一、poll介绍

poll与select一样，只负责IO的等的过程，只不过一次可以等待多个文件描述符，他的作用是让read和write不再阻塞。

是用来监视多个文件描述符的状态变化的
程序会停在poll这里等待，直到被监视的文件描述符有一个或多个发生了状态改变

二、poll的接口

poll的接口如下，比select要轻量化很多，只有三个参数

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
参数1：struct pollfd *fds，pollfd数组首元素地址，

  pollfd是操作系统给我们提供的结构体，主要成员如下
  fd：文件描述符
  events：用户告诉内核，需要关心的fd，上面的事件
  revents：poll返回，内核告诉用户，关心的fd，那些事件就绪

参数2：nfds_t nfds，数组元素个数

参数3：int timeout，毫秒级的等待时间
timeout > 0 等待timeout毫秒或者有fd就绪再返回。
timeout == 0 非阻塞轮询。
timeout == -1 阻塞等待，直到有fd就绪。

返回值：
ret  >  0 ：poll等待的多个fd中，已经就需要的fd个数
ret == 0 ：poll超时返回
ret  <  0 ：poll出错

poll的事件如下，这些值是bit位，可以通过 |（或运算） 的方式写入到events中，我们着重学习POLLIN和POLLOUT

三、poll使用例子

Log.hpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
#pragma once

#include <iostream>
#include <cstdarg>
#include <unistd.h>
#include <sys/stat.h>
#include <sys/types.h>
#include <pthread.h>
using namespace std;

enum
{
    Debug = 0,
    Info,
    Warning,
    Error,
    Fatal
};

enum
{
    Screen = 10,
    OneFile,
    ClassFile
};

string LevelToString(int level)
{
    switch (level)
    {
    case Debug:
        return "Debug";
    case Info:
        return "Info";
    case Warning:
        return "Warning";
    case Error:
        return "Error";
    case Fatal:
        return "Fatal";

    default:
        return "Unknown";
    }
}

const int default_style = Screen;
const string default_filename = "Log.";
const string logdir = "log";

class Log
{
public:
    Log(int style = default_style, string filename = default_filename)
        : _style(style), _filename(filename)
    {
        if (_style != Screen)
            mkdir(logdir.c_str(), 0775);
    }

    // 更改打印方式
    void Enable(int style)
    {
        _style = style;
        if (_style != Screen)
            mkdir(logdir.c_str(), 0775);
    }

    // 时间戳转化为年月日时分秒
    string GetTime()
    {
        time_t currtime = time(nullptr);
        struct tm *curr = localtime(&currtime);
        char time_buffer[128];
        snprintf(time_buffer, sizeof(time_buffer), "%d-%d-%d %d:%d:%d",
                 curr->tm_year + 1900, curr->tm_mon + 1, curr->tm_mday, curr->tm_hour, curr->tm_min, curr->tm_sec);
        return time_buffer;
    }

    // 写入到文件中
    void WriteLogToOneFile(const string &logname, const string &message)
    {
        FILE *fp = fopen(logname.c_str(), "a");
        if (fp == nullptr)
        {
            perror("fopen failed");
            exit(-1);
        }
        fprintf(fp, "%s\n", message.c_str());

        fclose(fp);
    }

    // 打印日志
    void WriteLogToClassFile(const string &levelstr, const string &message)
    {
        string logname = logdir;
        logname += "/";
        logname += _filename;
        logname += levelstr;
        WriteLogToOneFile(logname, message);
    }

    pthread_mutex_t lock = PTHREAD_MUTEX_INITIALIZER;
    void WriteLog(const string &levelstr, const string &message)
    {
        pthread_mutex_lock(&lock);
        switch (_style)
        {
        case Screen:
            cout << message << endl; // 打印到屏幕中
            break;
        case OneFile:
            WriteLogToClassFile("all", message); // 给定all，直接写到all里
            break;
        case ClassFile:
            WriteLogToClassFile(levelstr, message); // 写入levelstr里
            break;
        default:
            break;
        }
        pthread_mutex_unlock(&lock);
    }

    // 提供接口给运算符重载使用
    void _LogMessage(int level, const char *file, int line, char *rightbuffer)
    {
        char leftbuffer[1024];
        string levelstr = LevelToString(level);
        string currtime = GetTime();
        string  idstr = to_string(getpid());

        snprintf(leftbuffer, sizeof(leftbuffer), "[%s][%s][%s][%s:%d]", levelstr.c_str(), currtime.c_str(), idstr.c_str(), file, line);

        string messages = leftbuffer;
        messages += rightbuffer;
        WriteLog(levelstr, messages);
    }

    // 运算符重载
    void operator()(int level, const char *file, int line, const char *format, ...)
    {
        char rightbuffer[1024];
        va_list args;                                              // va_list 是指针
        va_start(args, format);                                    // 初始化va_list对象，format是最后一个确定的参数
        vsnprintf(rightbuffer, sizeof(rightbuffer), format, args); // 写入到rightbuffer中
        va_end(args);
        _LogMessage(level, file, line, rightbuffer);
    }

    ~Log()
    {
    }

private:
    int _style;
    string _filename;
};

Log lg;

class Conf
{
public:
    Conf()
    {
        lg.Enable(Screen);
    }
    ~Conf()
    {
    }
};

Conf conf;

// 辅助宏
#define lg(level, format, ...) lg(level, __FILE__, __LINE__, format, ##__VA_ARGS__)

Socket.hpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
#pragma once

#include <iostream>
#include <string>
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <cstring>
#include <unistd.h>
using namespace std;
namespace Net_Work
{
    static const int default_backlog = 5;
    static const int default_sockfd = -1;
    using namespace std;

    enum
    {
        SocketError = 1,
        BindError,
        ListenError,
        ConnectError,
    };

    // 封装套接字接口基类
    class Socket
    {
    public:
        // 封装了socket相关方法
        virtual ~Socket() {}
        virtual void CreateSocket() = 0;
        virtual void BindSocket(uint16_t port) = 0;
        virtual void ListenSocket(int backlog) = 0;
        virtual bool ConnectSocket(string &serverip, uint16_t serverport) = 0;
        virtual int AcceptSocket(string *peerip, uint16_t *peerport) = 0;
        virtual int GetSockFd() = 0;
        virtual void SetSockFd(int sockfd) = 0;
        virtual void CloseSocket() = 0;
        virtual bool Recv(string *buff, int size) = 0;
        virtual void Send(string &send_string) = 0;

        // 方法的集中在一起使用
    public:
        void BuildListenSocket(uint16_t port, int backlog = default_backlog)
        {
            CreateSocket();
            BindSocket(port);
            ListenSocket(backlog);
        }

        bool BuildConnectSocket(string &serverip, uint16_t serverport)
        {
            CreateSocket();
            return ConnectSocket(serverip, serverport);
        }

        void BuildNormalSocket(int sockfd)
        {
            SetSockFd(sockfd);
        }
    };

    class TcpSocket : public Socket
    {
    public:
        TcpSocket(int sockfd = default_sockfd)
            : _sockfd(sockfd)
        {
        }
        ~TcpSocket() {}

        void CreateSocket() override
        {
            _sockfd = socket(AF_INET, SOCK_STREAM, 0);
            if (_sockfd < 0)
                exit(SocketError);
        }
        void BindSocket(uint16_t port) override
        {
            int opt = 1;
            setsockopt(_sockfd, SOL_SOCKET, SO_REUSEADDR | SO_REUSEPORT, &opt, sizeof(opt));

            struct sockaddr_in local;
            memset(&local, 0, sizeof(local));
            local.sin_family = AF_INET;
            local.sin_port = htons(port);
            local.sin_addr.s_addr = INADDR_ANY;

            int n = bind(_sockfd, (struct sockaddr *)&local, sizeof(local));
            if (n < 0)
                exit(BindError);
        }
        void ListenSocket(int backlog) override
        {
            int n = listen(_sockfd, backlog);
            if (n < 0)
                exit(ListenError);
        }
        bool ConnectSocket(string &serverip, uint16_t serverport) override
        {
            struct sockaddr_in addr;
            memset(&addr, 0, sizeof(addr));
            addr.sin_family = AF_INET;
            addr.sin_port = htons(serverport);
            // addr.sin_addr.s_addr = inet_addr(serverip.c_str());
            inet_pton(AF_INET, serverip.c_str(), &addr.sin_addr);
            int n = connect(_sockfd, (sockaddr *)&addr, sizeof(addr));

            if (n == 0)
                return true;
            return false;
        }
        int AcceptSocket(string *peerip, uint16_t *peerport) override
        {
            struct sockaddr_in addr;
            socklen_t len = sizeof(addr);
            int newsockfd = accept(_sockfd, (sockaddr *)&addr, &len);
            if (newsockfd < 0)
                return -1;

            // *peerip = inet_ntoa(addr.sin_addr);

            // INET_ADDRSTRLEN 是一个定义在头文件中的宏，表示 IPv4 地址的最大长度
            char ip_str[INET_ADDRSTRLEN];
            inet_ntop(AF_INET, &addr.sin_addr, ip_str, INET_ADDRSTRLEN);
            *peerip = ip_str;

            *peerport = ntohs(addr.sin_port);
            return newsockfd;
        }
        int GetSockFd() override
        {
            return _sockfd;
        }
        void SetSockFd(int sockfd) override
        {
            _sockfd = sockfd;
        }
        void CloseSocket() override
        {
            if (_sockfd > default_sockfd)
                close(_sockfd);
        }

        bool Recv(string *buff, int size) override
        {
            char inbuffer[size];
            ssize_t n = recv(_sockfd, inbuffer, size - 1, 0);
            if (n > 0)
            {
                inbuffer[n] = 0;
                *buff += inbuffer;
                return true;
            }
            else
                return false;
        }

        void Send(string &send_string) override
        {
            send(_sockfd, send_string.c_str(),send_string.size(),0);
        }

    private:
        int _sockfd;
        string _ip;
        uint16_t _port;
    };
}

PollServer.hpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
#pragma once
#include <iostream>
#include <string>
#include <poll.h>
#include <memory>
#include "Log.hpp"
#include "Socket.hpp"

using namespace Net_Work;
const static int gdefaultport = 8888;
const static int gbacklog = 8;
const static int gnum = 1024;
class PollServer
{
public:
    PollServer(int port) : _port(port), _num(gnum), _listensock(new TcpSocket())
    {
    }
    void HandlerEvent()
    {
        for (int i = 0; i < _num; i++)
        {
            if (_rfds[i].fd == -1)
                continue;

            int fd = _rfds[i].fd;
            short revents = _rfds[i].revents;
            // 判断事件是否就绪
            if (revents & POLLIN)
            {
                // 读事件分两类，一类是新链接到来，一类是新数据到来
                if (fd == _listensock->GetSockFd())
                {
                    // 新链接到来
                    lg(Info, "get a new link");
                    // 获取连接
                    std::string clientip;
                    uint16_t clientport;
                    int sockfd = _listensock->AcceptSocket(&clientip, &clientport);
                    if (sockfd == -1)
                    {
                        lg(Error, "accept error");
                        continue;
                    }
                    lg(Info, "get a client,client info is# %s:%d,fd: %d", clientip.c_str(), clientport, sockfd);
                    // 此时获取连接成功了，但是不能直接read write,sockfd仍需要交给poll托管 -- 添加到数组_rfds中
                    int pos = 0;
                    for (; pos < _num; pos++)
                    {
                        if (_rfds[pos].fd == -1)
                        {
                            _rfds[pos].fd = sockfd;
                            _rfds[pos].events = POLLIN;
                            lg(Info, "get a new link, fd is : %d", sockfd);
                            break;
                        }
                    }
                    if (pos == _num)
                    {
                        // 1.扩容
                        // 2.关闭
                        close(sockfd);
                        lg(Warning, "server is full, be carefull...");
                    }
                }
                else
                {
                    // 普通的读事件就绪
                    char buffer[1024];
                    ssize_t n = recv(fd, buffer, sizeof(buffer-1), 0);
                    if (n > 0)
                    {
                        buffer[n] = 0;
                        lg(Info, "client say# %s", buffer);
                        std::string message = "你好,同志";
                        message += buffer;
                        send(fd, message.c_str(), message.size(), 0);
                    }
                    else
                    {
                        lg(Warning, "client quit ,maybe close or error,close fd: %d", fd);
                        close(fd);
                        // 还要取消poll的关心
                        _rfds[i].fd = -1;
                        _rfds[i].events = 0;
                        _rfds[i].revents = 0;
                    }
                }
            }
        }
    }
    void InitServer()
    {
        _listensock->BuildListenSocket(_port, gbacklog);
        _rfds = new struct pollfd[_num];
        for (int i = 0; i < _num; i++)
        {
            _rfds[i].fd = -1;
            _rfds[i].events = 0;
            _rfds[i].revents = 0;
        }
        // 最开始的时候，只有一个文件描述符，Listensock
        _rfds[0].fd = _listensock->GetSockFd();
        _rfds[0].events |= POLLIN;
    }

    void Loop()
    {
        _isrunning = true;
        // 循环重置select需要的rfds
        while (_isrunning)
        {
            // 定义时间
            int timeout = 1000;

            //PrintDebug();

            // rfds是输入输出型参数，rfds是在select调用返回时，不断被修改，所以每次需要重置rfds
            int n = poll(_rfds, _num, timeout);
            switch (n)
            {
            case 0:
                lg(Info, "select timeout...");
                break;
            case -1:
                lg(Error, "select error!!!");
            default:
                // 正常就绪的fd
                lg(Info, "select success,begin event handler");
                HandlerEvent();
                break;
            }
        }
        _isrunning = false;
    }

    void Stop()
    {
        _isrunning = false;
    }

    void PrintDebug()
    {
        // std::cout << "current select rfds list is :";
        // for (int i = 0; i < num; i++)
        // {
        //     if (_rfds_array[i] == nullptr)
        //         continue;
        //     else
        //         std::cout << _rfds_array[i]->GetSockFd() << " ";
        // }
        // std::cout << std::endl;
    }

private:
    std::unique_ptr<Socket> _listensock;
    int _port;
    bool _isrunning;

    struct pollfd *_rfds;
    int _num;
};

Main.cc

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
#include <iostream>
#include <memory>
#include "PollServer.hpp"

void Usage(char* argv)
{

    std::cout<<"Usage: \n\t"<<argv<<" port\n"<<std::endl;
}
// ./select_server 8080
int main(int argc,char* argv[])
{
    // std::cout<<num<<std::endl;       1024
    if(argc!=2)
    {
        Usage(argv[0]);
        return -1;
    }
    uint16_t localport = std::stoi(argv[1]);
    std::unique_ptr<PollServer> svr = std::make_unique<PollServer>(localport);
    svr->InitServer();
    svr->Loop();

    return 0;
}

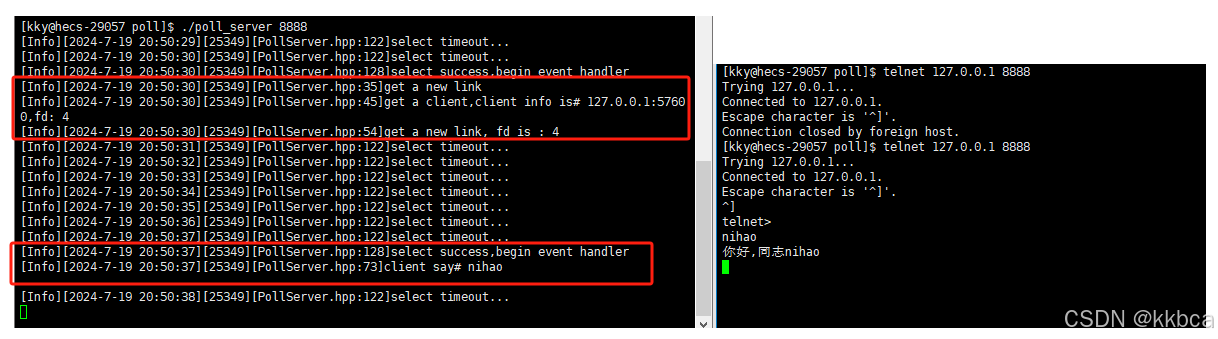

运行结果如下，由于我们poll第三个参数设置的是1000ms，因此每一秒poll都会返回，当发现有新链接的时候，就回去执行函数，在函数中调用write或者read变不会再阻塞了。

许可协议

本文采用 署名-非商业性使用-相同方式共享 4.0 国际 许可协议，转载请注明出处。

博客近期分类标签专栏归档
项目Linux 0.11
探索站点笔记
友链朋友圈
描述文字
© 2024 mengchao666 开心地使用 Stellar 主题，星际地球第
收集了 62 颗星星 ✧ 共 83.3k 粒星尘，好像写完一本 鲁迅 的《呐喊》了啊
